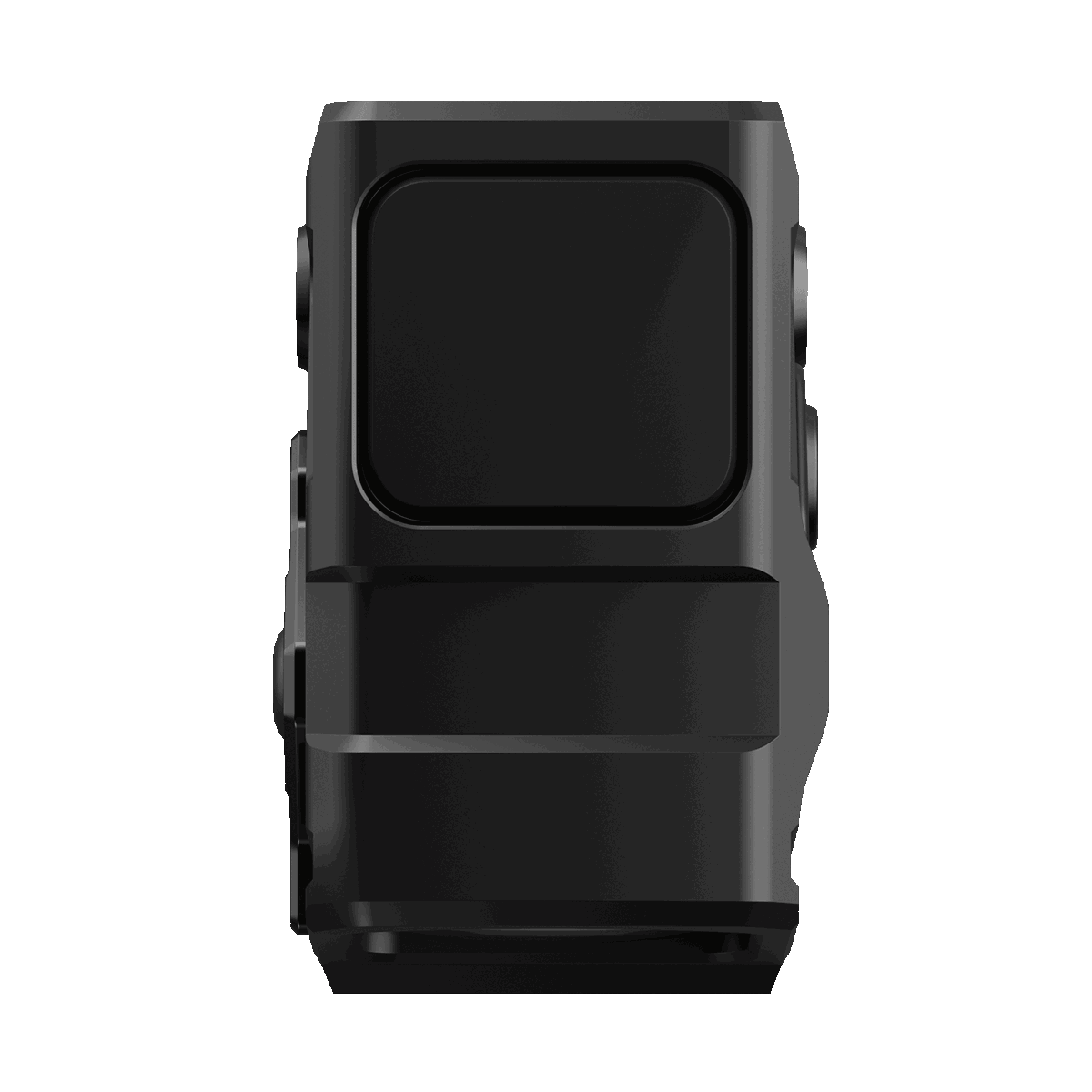

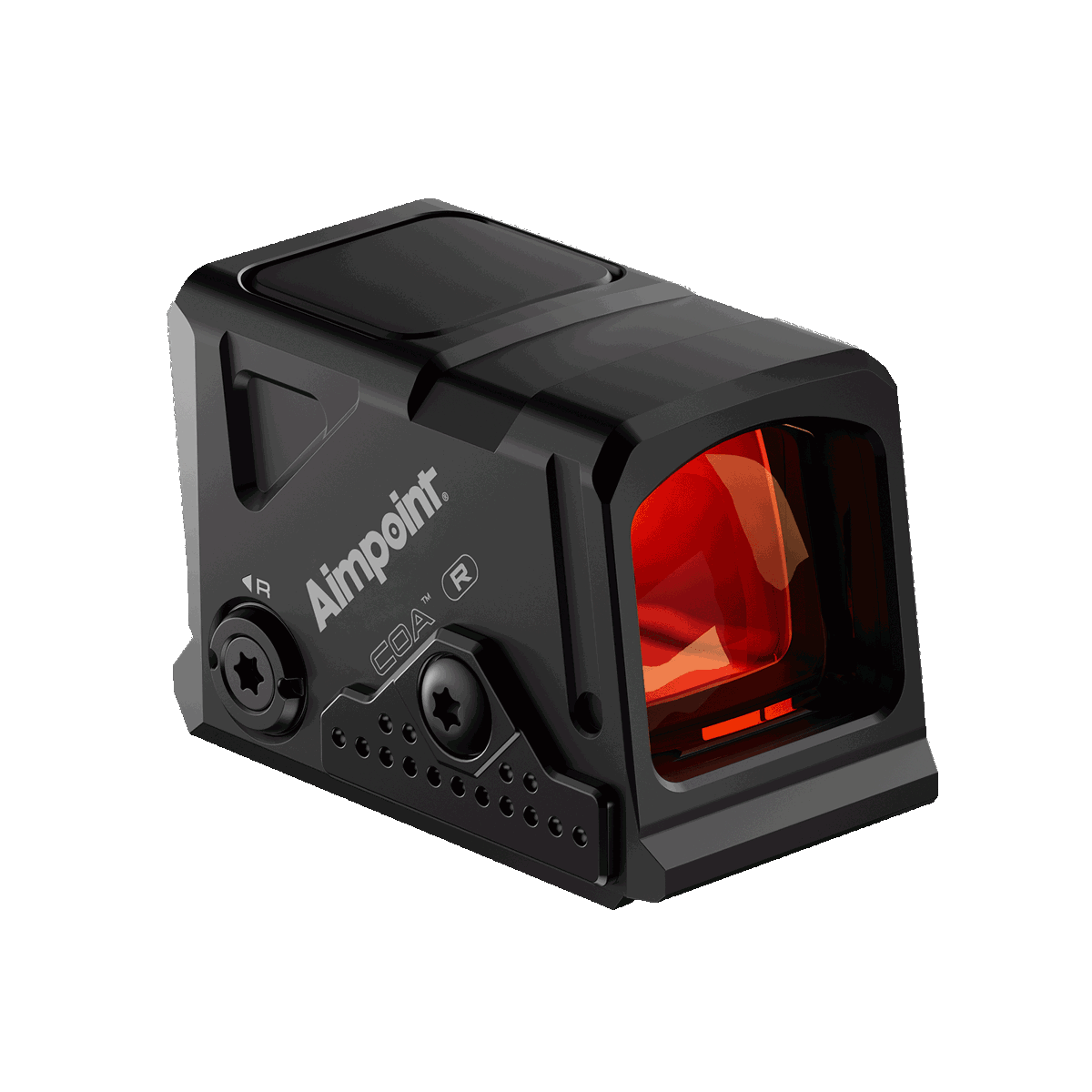

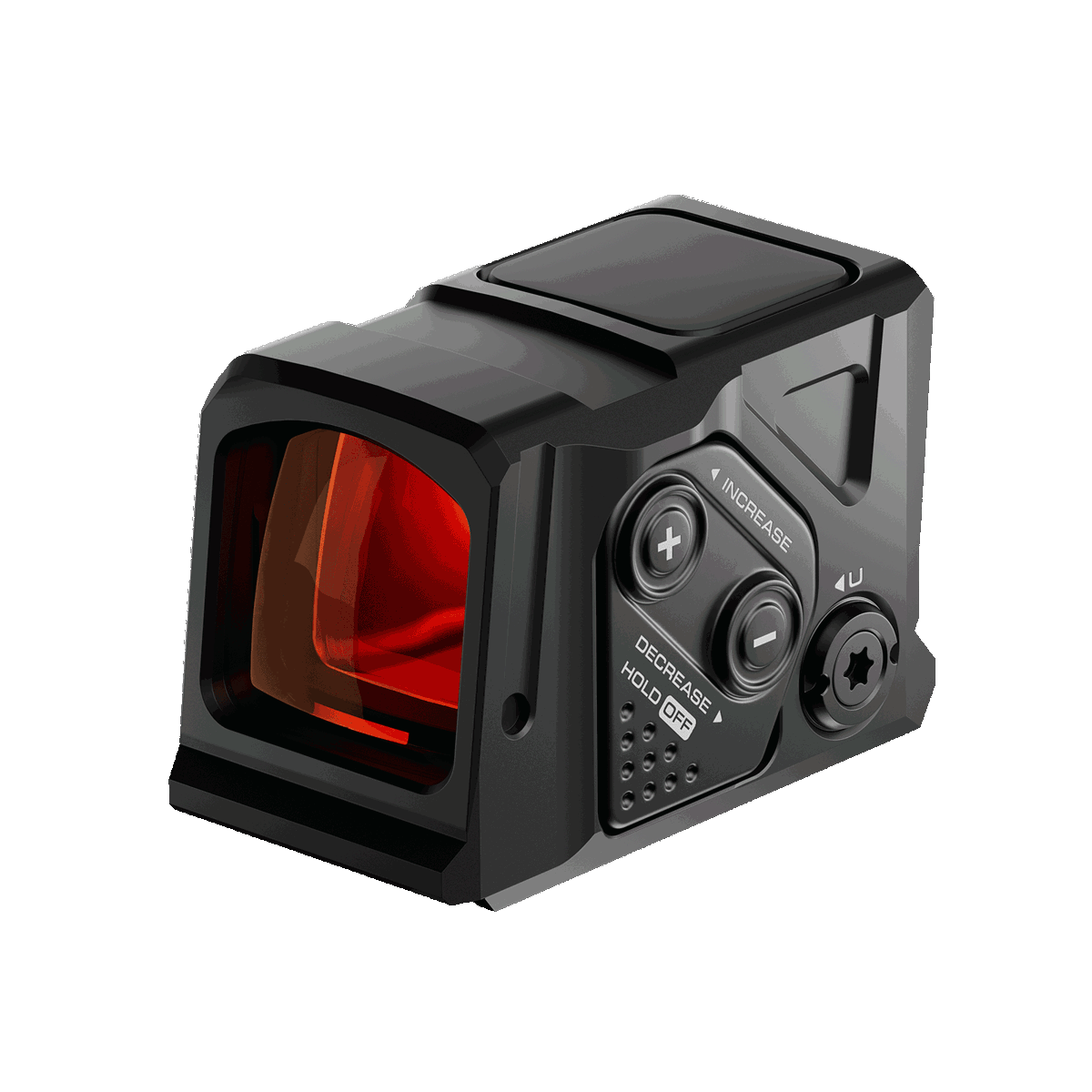

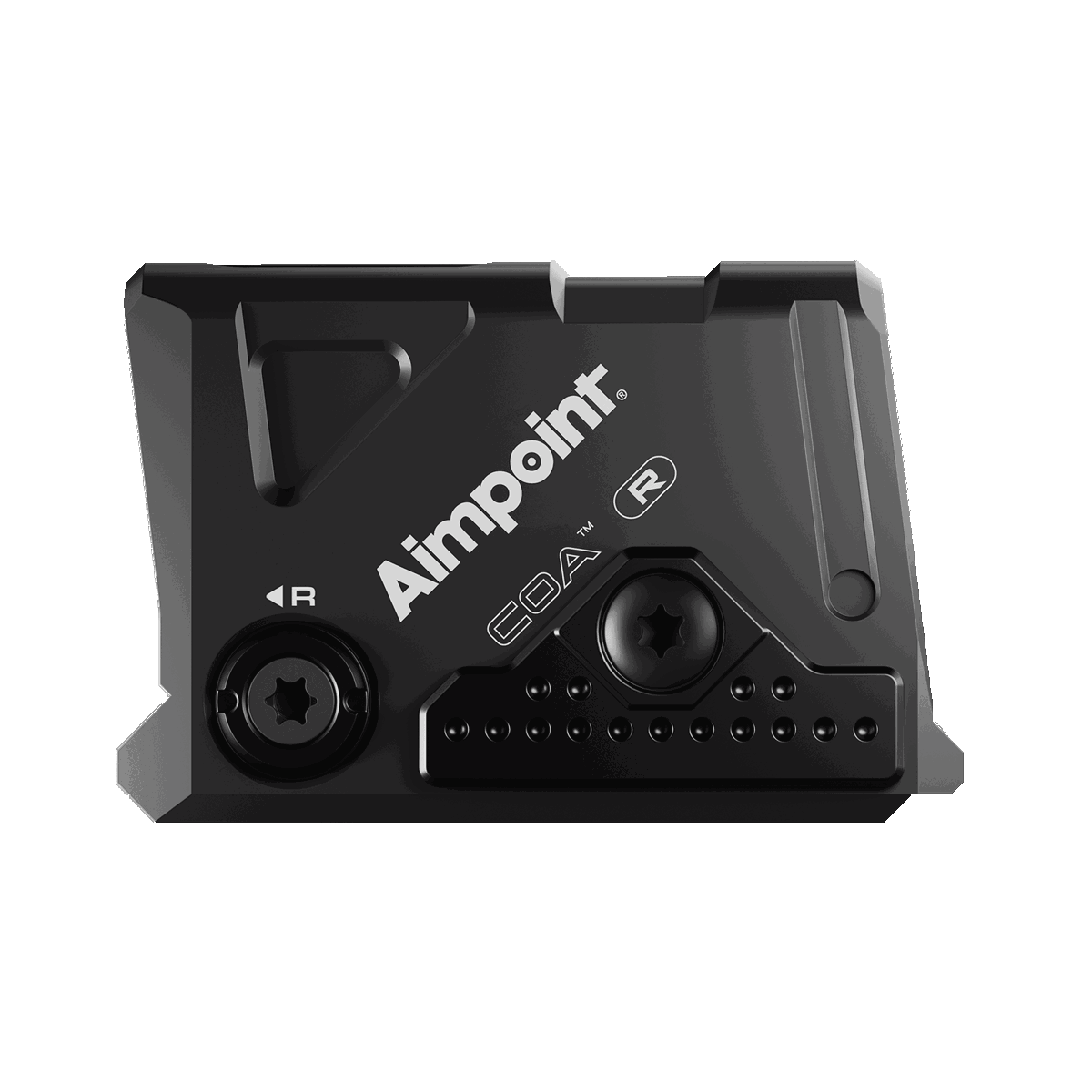

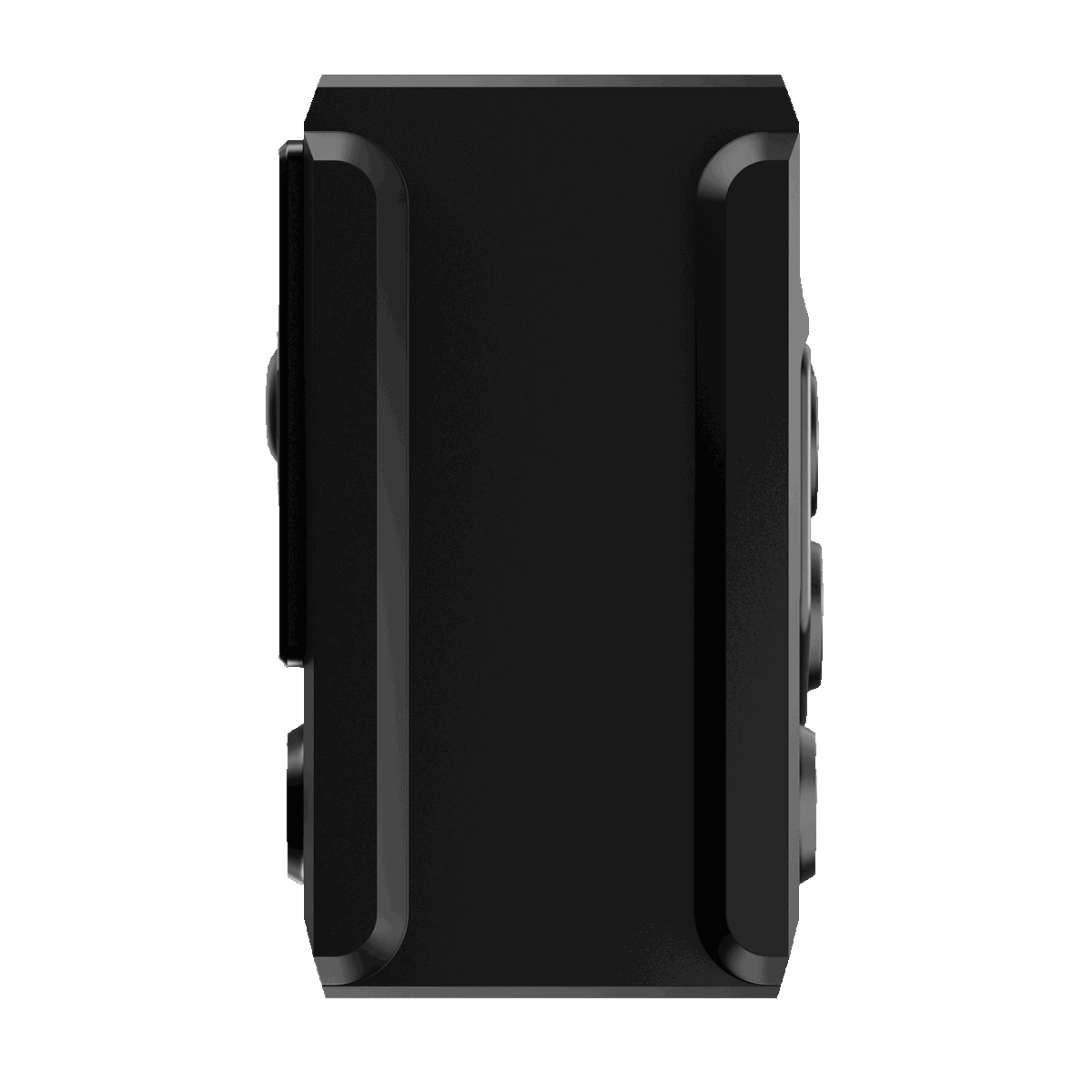

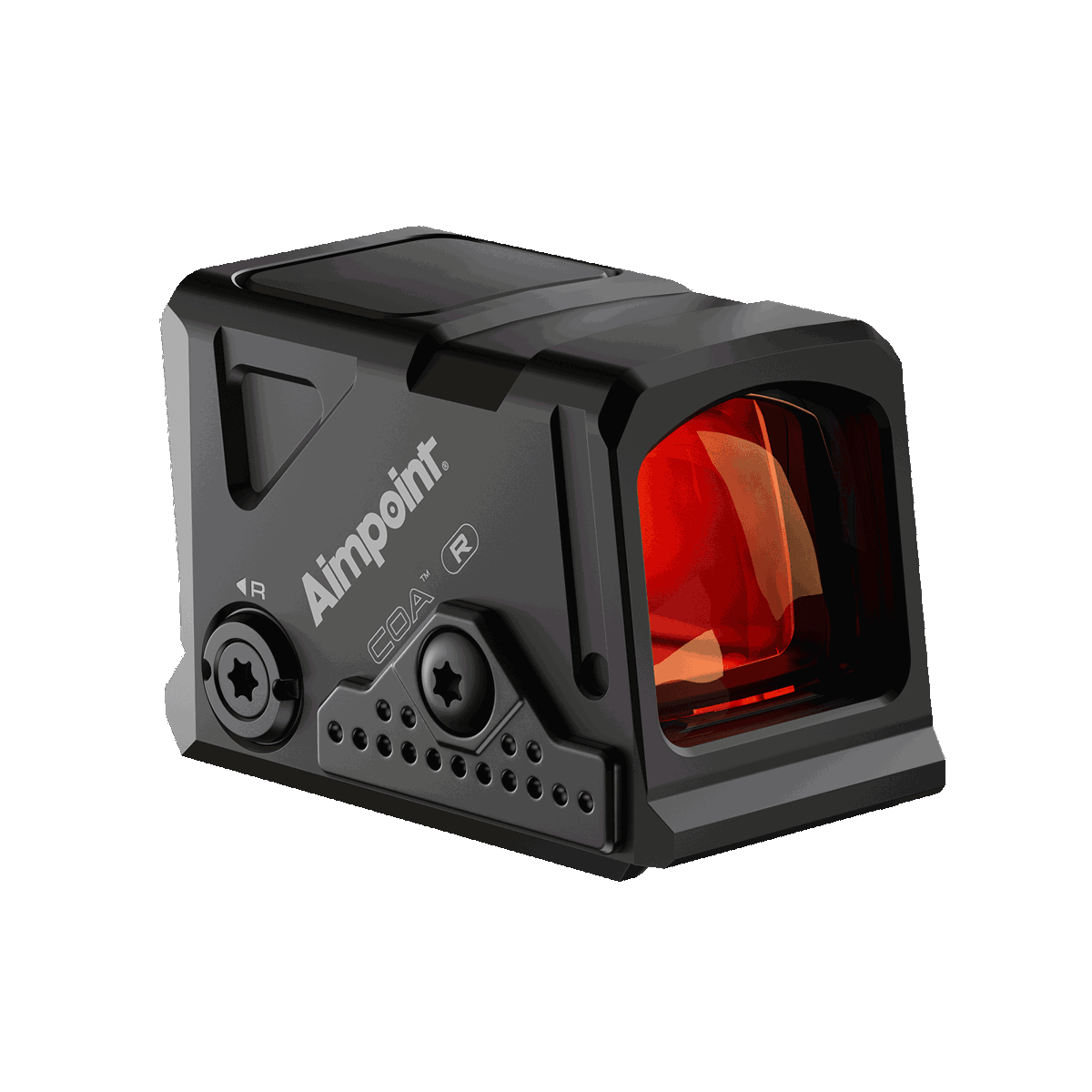

Aimpoint COA R

Name: Aimpoint COA R
Brand: Aimpoint
SKU: 77-200669
Price: 738.0 EUR
Availability: InStock

77-200669

€738,00 EUR

Tax included Shipping calculated at checkout.

Authorized Aimpoint Dealer Genuine product · Full manufacturer warranty

Full description

This red dot uses the Aimpoint A-CUT footprint standard.

The Aimpoint COA R is a rifle reflex sight that mounts via this interface, using a dedicated rifle mount or an A-CUT-to-MICRO conversion plate for optics already set up for Aimpoint Micro footprints.

Essential info

Mounting interface: Aimpoint A-CUT (rifle mount or A-CUT-to-MICRO conversion plate)
Reticle: 3.5 MOA dot [red]
Total dimensions [length x width x height]: 45.0 x 28.0 x 30.0 mm [1.77 x 1.10 x 1.18"]

Tubeless open sight picture with unlimited eye relief and no housing to obstruct the field of view

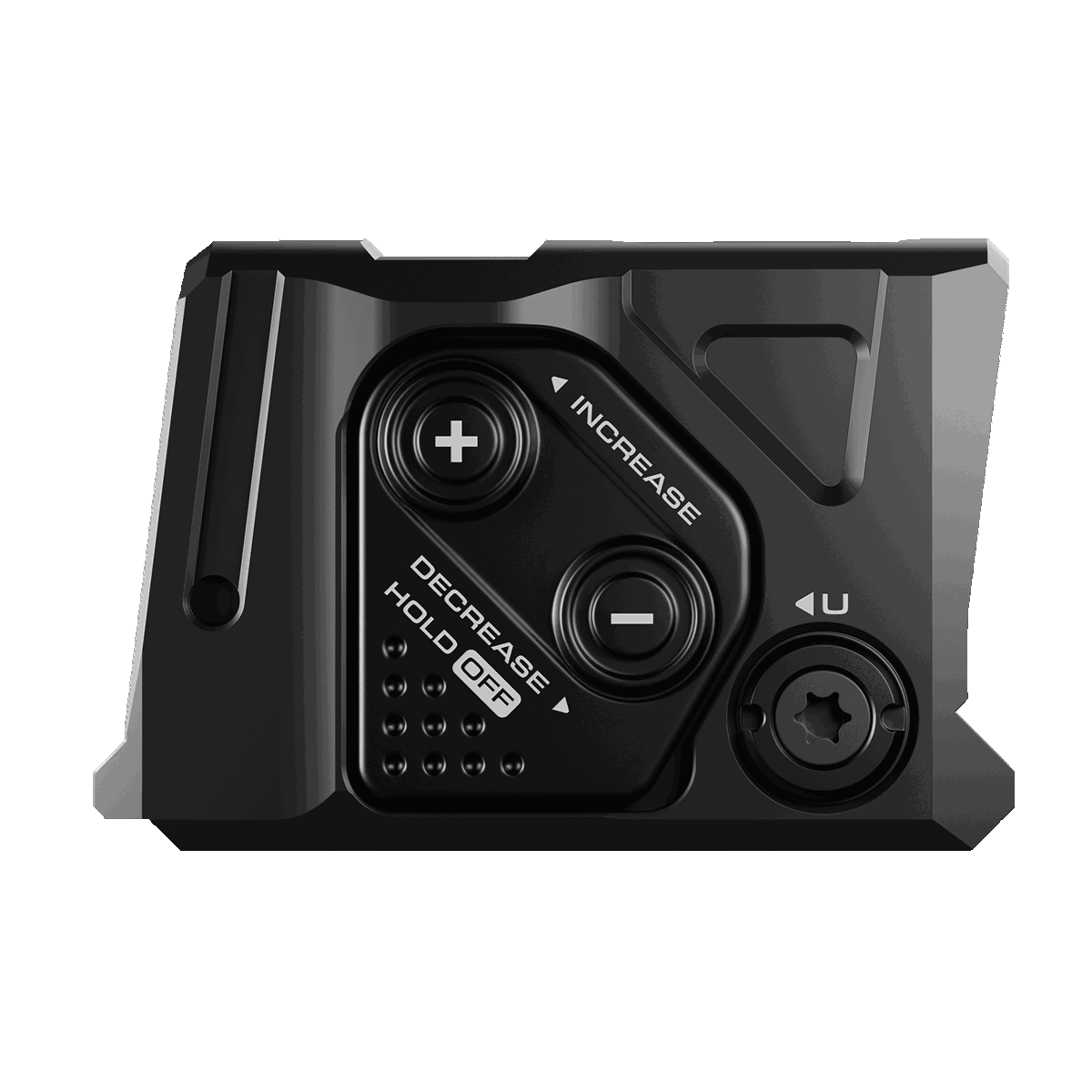

12 brightness settings — 4 night-vision-compatible and 8 daylight-visible
Compatible with A-CUT-to-MICRO conversion plates for existing Micro-footprint mounts
Fully enclosed optical channel, sealed against dust and debris

Manufacturer:	Aimpoint
Finish:	Anodized, semi-matte, matte grey to black
Housing material:	High-strength aluminium
Magnification:	1x [no magnification]
Reticle:	3.5 MOA dot, red
Illumination type:	LED, 650 nm red
Brightness settings:	12 [4 night-vision-compatible, 8 daylight]
Eye relief:	Unlimited
Parallax:	Parallax free, no centering required
Mounting interface:	Aimpoint A-CUT (rifle mount / A-CUT-to-MICRO conversion plate)
Battery type:	CR2032
Battery life:	Up to 50,000 hours at daylight setting 7 (over 5 years)
Operating temperature:	-32°C to +60°C [-26°F to +140°F]
Water resistance:	Submersible to 25 m [80 ft]
Shock resistance:	Vibration tested, 10-150 Hz range
Weight:	48 g [optic only]
Dimensions:	45 x 28 x 30 mm

77-200669
