Aimpoint COA

Name: Aimpoint COA
Brand: Aimpoint
SKU: 77-200489
Price: 748.0 EUR
Availability: InStock

77-200489

€748,00 EUR

Tax included Shipping calculated at checkout.

Authorized Aimpoint Dealer Genuine product · Full manufacturer warranty

Full description

This red dot uses the Aimpoint A-CUT footprint standard.

The Aimpoint COA is a slide-mounted pistol reflex sight that mounts via this integrated interface, machined directly into the slide with no screws through the optic housing.

Essential info

Mounting interface: Aimpoint A-CUT (slide-integrated, no housing screws)
Reticle: 3.5 MOA dot [red]
Window size [height x width]: 15.0 x 15.0 mm [0.59 x 0.59"]
Total dimensions [length x width x height]: 45.0 x 28.0 x 30.0 mm [1.77 x 1.10 x 1.18"]

Tubeless open sight picture for fast, both-eyes-open target acquisition, with unlimited eye relief

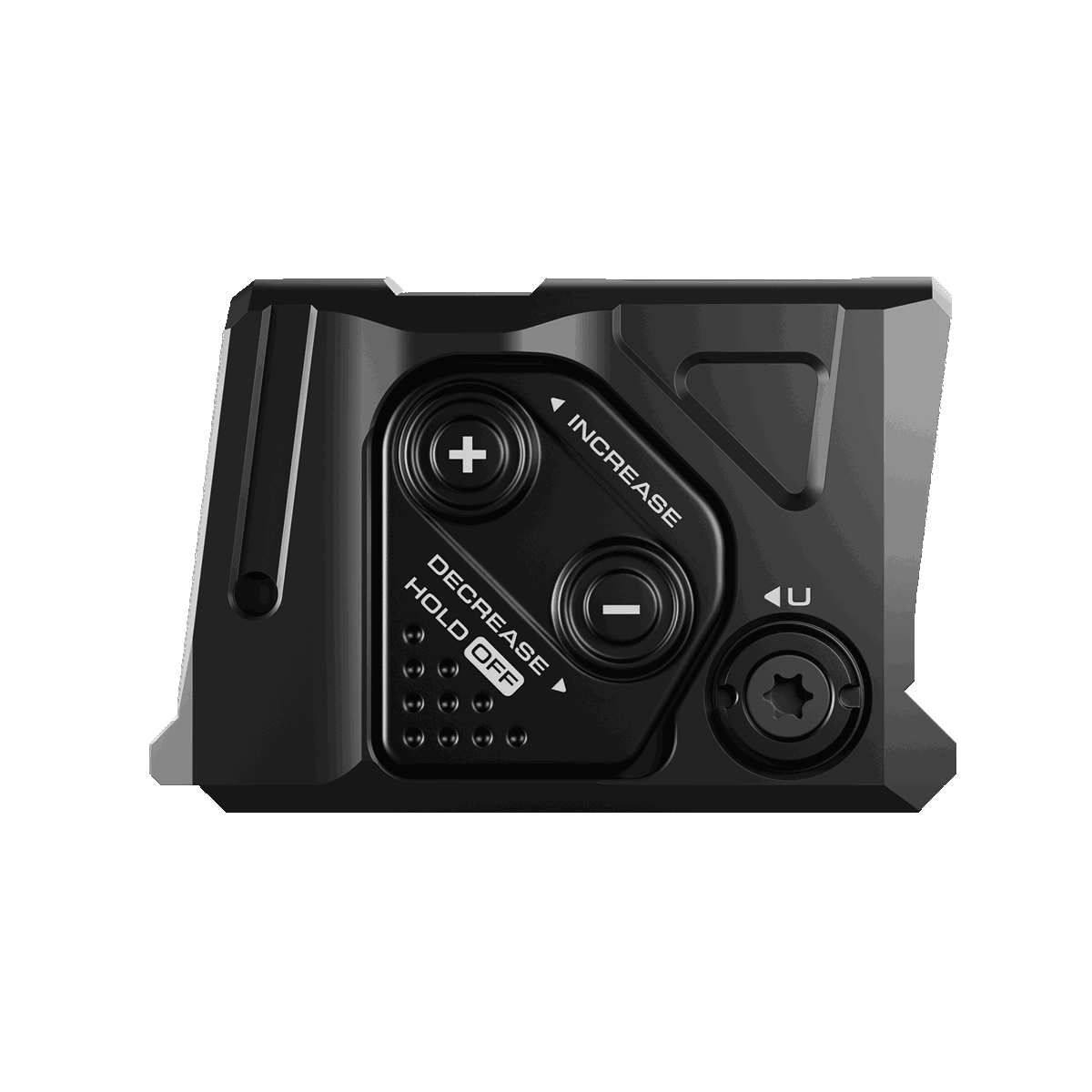

12 brightness settings — 4 night-vision-compatible and 8 daylight-visible — adjustable without removing the optic from the slide
Co-witness capable with suitable iron sights
Tested to withstand the recoil of 40,000 rounds of 9mm, mounted on a Glock 45 slide
Fully enclosed optical channel, sealed against dust and debris

Manufacturer:	Aimpoint
Finish:	Anodized, semi-matte, matte grey to black
Housing material:	7075-T6 aluminium
Magnification:	1x [no magnification]
Reticle:	3.5 MOA dot, red
Illumination type:	LED, 650 nm red
Brightness settings:	12 [4 night-vision-compatible, 8 daylight]
Eye relief:	Unlimited
Parallax:	Parallax free, no centering required
Mounting interface:	Aimpoint A-CUT
Battery type:	CR2032
Battery life:	Up to 50,000 hours (over 5 years)
Operating temperature:	-45°C to +73°C [-49°F to +163°F]
Water resistance:	Submersible to 25 m [80 ft]
Shock resistance:	Tested to 40,000 rounds of 9mm recoil; MIL-STD-810G vibration tested
Weight:	48 g
Dimensions:	45 x 28 x 30 mm
Window size:	15 x 15 mm
